How a Perfume Cap Manufacturer Shrinks Crystal Cap Size Without Losing Strength or Seal: An Industry Risk Disclosure

A perfume cap manufacturer can typically push crystal wall thickness down from the common 3–5 mm range to 2–3 mm, and in narrow, high-risk geometries, as low as 1.5–2 mm — but every millimeter removed adds measurable risk to drilling, assembly, and yield. That single number explains almost everything about why “make it smaller” is one of the most expensive sentences in this industry. You may have seen a competitor’s cap that looks impossibly slim and assumed it was a simple mold change. It almost never is.

This article is written from the inside of a workshop, not from a sales deck. It walks through what actually happens inside the structure of a cap when you ask a stone perfume cap manufacturer to shrink it, where the real engineering limits sit, and where the financial and quality risks show up if those limits get ignored. If you’re sourcing from a crystal perfume cap wholesale supplier, or evaluating quotes from different perfume lid factory partners, this is the technical context behind the price differences you’re seeing.

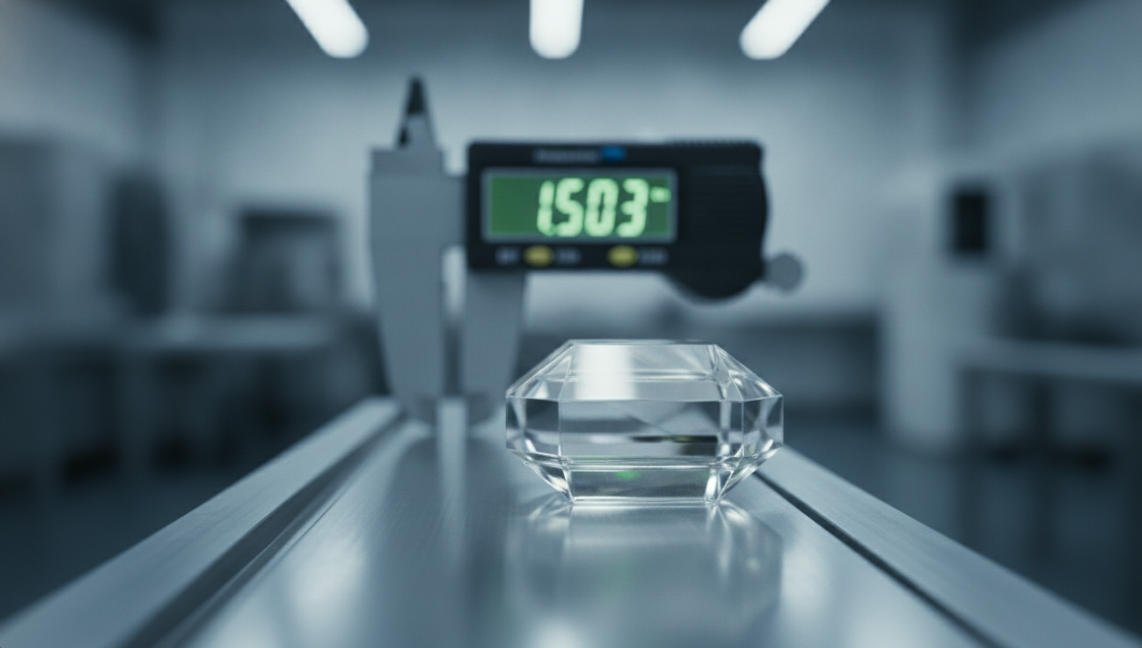

What Actually Limits the Size of a Perfume Cap

Here’s the part most buyers get wrong: the outer shape of a crystal or stone cap is rarely the bottleneck. You can sketch almost any silhouette you want. The real ceiling on size comes from what has to fit inside that silhouette — the sprayer head, the retention structure that keeps the cap from sliding off, the seal that stops leakage, the anti-wobble fit, and the crystal wall that has to survive all of that without cracking. A perfume cap manufacturer is essentially solving a packing problem, not a styling problem, and that distinction changes how you should read every quote you receive.

Why a Perfume Cap Manufacturer Treats the Inside as the Real Constraint

Think of the inside of a cap as a small apartment with too much furniture. You have an ABS or PP inner liner, sometimes a metal sleeve, a magnetic component, an adhesive layer, and the clearance needed to insert and remove the cap thousands of times without it loosening. Every one of those elements takes up physical space, and stone or crystal — unlike plastic — does not flex to compensate for tight tolerances. This means you can have two caps with identical outer dimensions where one is structurally safe and the other is one drop away from a crack, simply because of how efficiently the internal layout was engineered. A stone perfume cap manufacturer that understands this will quote you based on internal complexity, not just the size you see on the outside.

So what does this mean for you practically? It means that when you ask for “just a bit smaller,” you’re not asking for a cosmetic tweak — you’re asking your supplier to redesign the internal architecture of the cap from the inside out. A request that sounds small on a spec sheet can trigger a complete retooling of the liner, the magnet, and the adhesive process, which is exactly why pricing can shift dramatically for what looks like a 2mm difference on paper.

The Six Internal Variables a Perfume Cap Factory Has to Balance

There are roughly six internal elements competing for the same limited space inside any cap: crystal wall thickness, inner liner thickness, adhesive layer thickness, magnetic component size, insertion depth, and the dimensional tolerance the machining process needs to leave as a safety margin. A perfume cap factory that’s good at miniaturization isn’t necessarily using exotic materials — it’s usually just better at shaving small amounts off several of these variables simultaneously rather than relying on one dramatic change. Shrinking wall thickness alone, for instance, without also tightening the liner and the tolerance margin, just moves the crack risk somewhere else.

You should ask any stone perfume lid manufacturer you’re evaluating which of these six variables they actually optimized, rather than accepting a vague answer like “we made it more compact.” A supplier who can name the specific liner thickness, magnet type, and tolerance spec they’re working with is telling you something real about their process; a supplier who can’t is probably guessing, and guessing on a brittle material is how you end up with a returned shipment.

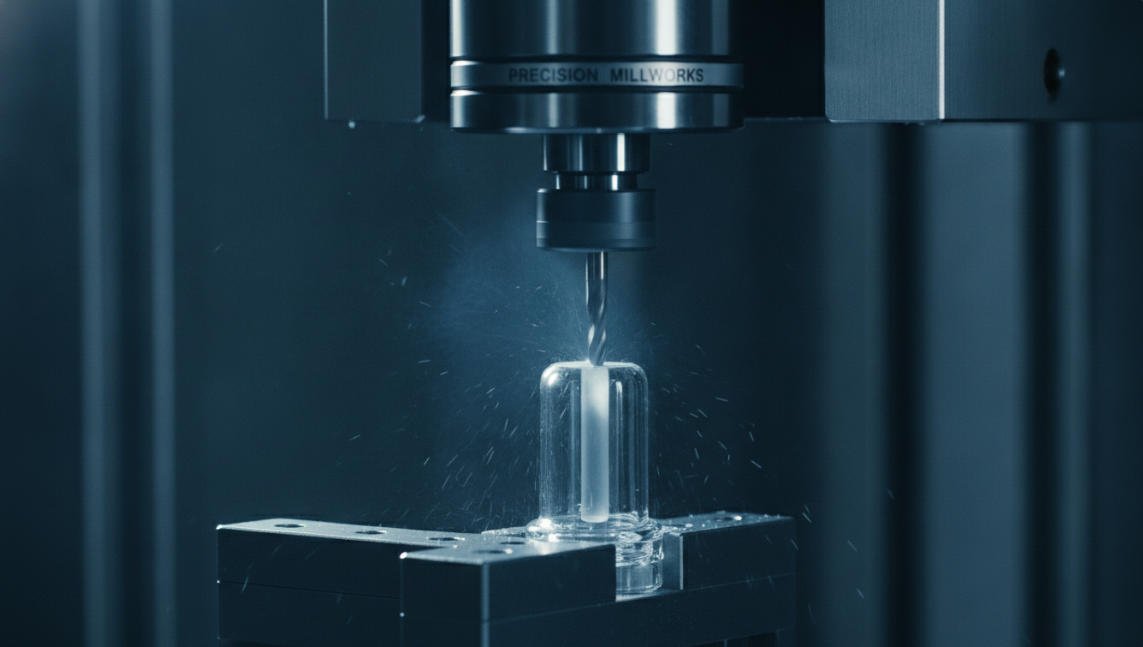

How a Stone Perfume Cap Manufacturer Reduces Crystal Wall Thickness

This is usually the first place buyers look when they want a smaller cap, and for good reason — wall thickness is the single biggest lever on outer dimensions. According to GIA’s research on gemstone durability, a gemstone’s hardness indicates how well it resists scratches, but hardness alone says nothing about how well a stone resists breaking or chipping under stress — that’s a separate property called toughness. This distinction matters enormously here: a stone can be hard enough to survive years of handling and still crack at a thin wall if the internal stress isn’t managed correctly during cutting.

The Real Numbers Behind Thinner Crystal Walls

Across the industry, you’ll see three rough tiers. General-purpose factories tend to hold a 3–5 mm minimum wall thickness as a safety buffer, because it absorbs machining error without much risk. Mid-to-high-end shops that have invested in better tooling can bring that down to 2–3 mm reliably across a production run. Going below that — into the 1.5–2 mm range — is technically possible but sits in what most engineers would call a high-risk zone, where a small batch can succeed and the next batch can show a 10–20% spike in micro-fractures if even one variable drifts. So what does that mean for your order? It means that if your sourcing brief asks for sub-2mm walls without flexibility, you should expect either a higher unit cost to cover the lower yield, or a longer qualification period before the supplier commits to volume production.

The way this thinning actually gets achieved is less about a secret technique and more about precision discipline. CNC accuracy gets pushed higher, tool vibration gets dampened through better spindle balancing and slower feed rates, and drilling sequences get reordered so that the most stress-sensitive cuts happen last, when the surrounding material is still at its strongest. None of these changes are visually dramatic on a factory tour, but their cumulative effect is what separates a 2mm wall that survives a drop test from one that doesn’t. This means you can ask a candidate perfume cap factory directly about their feed rate and spindle vibration control, and a supplier with real miniaturization experience will have a specific answer rather than a marketing one.

Why Slower Machining Isn’t a Red Flag

Buyers sometimes get nervous when a quote includes longer machining time per unit, assuming it signals inefficiency. In thin-wall crystal work, it’s usually the opposite signal. A slower, more controlled drilling pass reduces the heat and vibration that cause hairline fractures, which is precisely the kind of damage that won’t show up in a visual inspection but will show up three months later as a field failure. If you’re comparing two quotes for the same wall thickness and one perfume cap factory is dramatically faster, it’s worth asking what they’ve changed in their drilling sequence to maintain that speed — because something in the safety margin usually had to move to make room for it.

This is also where natural stone choice starts to interact with wall thickness, a topic detailed further in the material selection section below. For now, the practical takeaway is this: when you request a thinner wall, you are not asking for a cheaper version of the same process — you are asking for a different, more controlled process, and the price difference you see reflects real labor and yield costs, not markup.

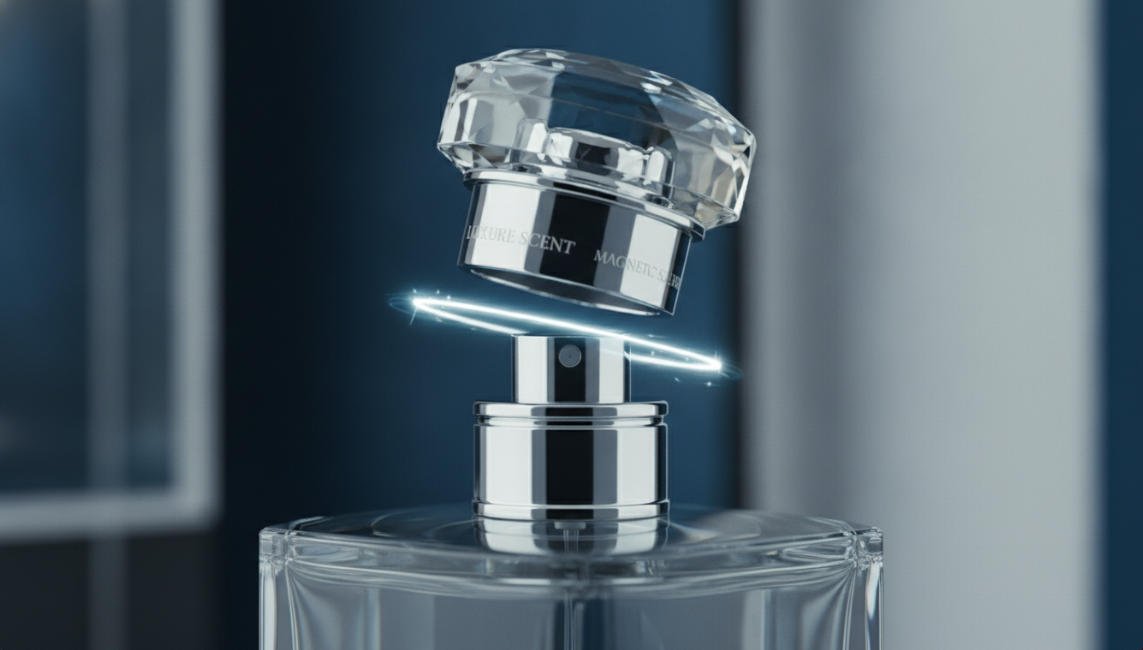

Shrinking the Inner Liner and the Magnetic Closure

If wall thickness is the most visible lever, the inner liner is the most underrated one. Most buyers never think about the liner because it’s invisible once the cap is assembled, but it routinely occupies more internal volume than the crystal shell itself. A stone perfume lid manufacturer that ignores the liner while focusing only on the crystal wall is leaving the easiest size reduction on the table.

From 1.5mm to 0.8mm: What Thin-Wall Injection Actually Changes

The inner liner — typically ABS or PP, sometimes paired with a metal sleeve for added rigidity — has historically been molded at around 1.5 mm thickness because that’s a comfortable, low-risk standard for injection tooling. Thin-wall injection molding techniques can bring that down to 0.8 mm, and in some configurations as low as 0.5 mm, without losing the structural role the liner plays in holding the magnet and guiding the insertion fit. That’s nearly a full millimeter of internal space recovered, on each side of the liner wall, which on a small cap can be the difference between a design that’s physically possible and one that isn’t.

So what does a thinner liner actually buy you? It means the outer crystal shell can either shrink by a corresponding amount, or stay the same size while gaining wall thickness back for safety — your supplier should be able to tell you which trade-off they made and why. This is also where assembly precision starts to matter more than material choice: a 0.5mm liner has very little margin for a poorly aligned mold, so a perfume lid factory running this thin needs tighter injection tooling tolerances than one running a standard 1.5mm liner.

Why Magnetic Strength Doesn’t Have to Shrink With the Magnet

The other major internal component is the magnetic closure, and this is where a lot of buyers assume a trade-off that doesn’t actually have to exist. Using N52-grade neodymium magnets — among the strongest commercially available magnetic grades — lets a manufacturer use a physically smaller magnet while holding the same retention force as a larger, weaker-grade magnet. Thin disc magnets, ring-shaped magnets, and single-magnet configurations (instead of paired magnet arrays) all reduce the physical footprint further while keeping the closure feel consistent.

This matters because the “snap” feel of a magnetic cap is one of the first things a customer notices when they pick up the bottle, and it’s also one of the easiest things to get wrong when shrinking a cap. You can have two caps with visually identical exteriors where one closes with a confident, audible click and the other feels weak and uncertain — the difference is almost always magnet grade and placement, not the cap’s outer size. This means that when you’re sourcing from a crystal perfume cap wholesale partner, asking specifically about magnet grade (N52 versus a generic, unlabeled grade) is a faster way to predict closure quality than asking about the cap’s dimensions alone.

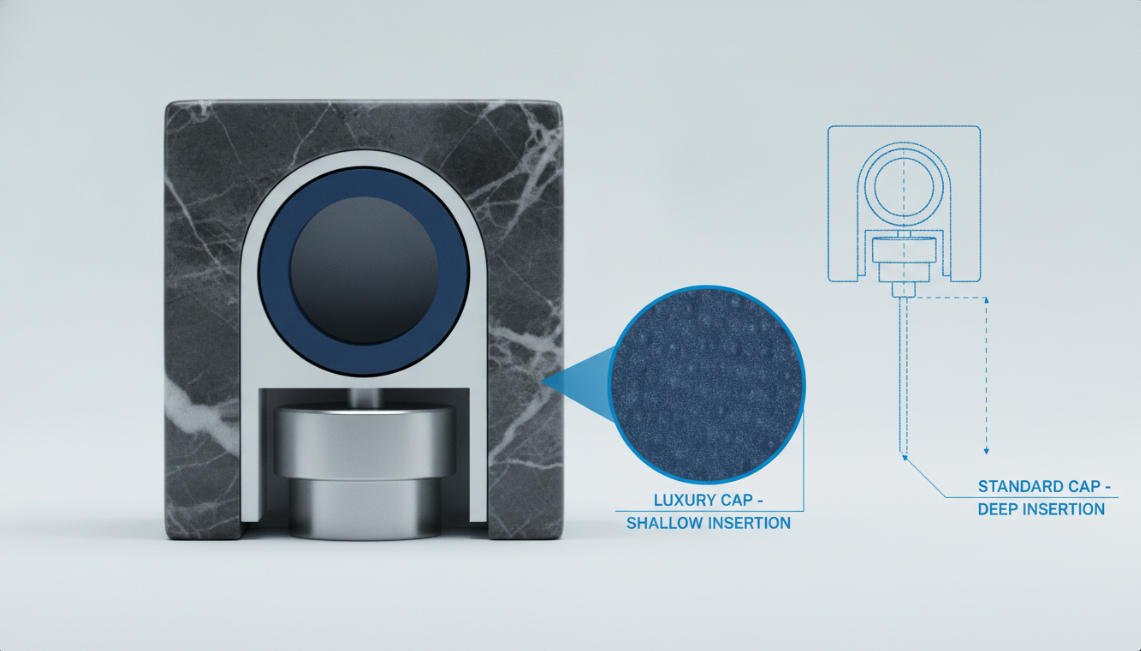

Reducing Insertion Depth Without Weakening the Grip

Once the wall thickness and the inner liner have both been optimized, the next lever is how deep the cap actually has to travel down over the sprayer head to hold securely. This is a dimension most buyers never think to ask about, yet it can account for a noticeable share of a cap’s total height. A perfume cap manufacturer that’s serious about miniaturization will treat insertion depth as its own design variable, not as a fixed consequence of the sprayer’s shape.

How Stop Points and Limit Rings Cut Down Cap Height

The traditional approach to securing a cap is to make it cover a generous length of the sprayer stem, on the theory that more coverage means more grip. In practice, grip comes from precise contact at the right points, not from sheer coverage length. By adding a mechanical stop point, a limit ring, or a silicone buffer ring at a calculated position, a stone perfume cap manufacturer can let the cap make firm, secure contact at a much shallower depth than the traditional design requires. The silicone ring in particular does double duty — it absorbs the small amount of play that would otherwise cause wobble, while also letting the rigid insertion structure above it shrink.

So what does this mean for your finished product? It means the cap’s overall height can come down without the customer ever feeling a difference in how securely it sits on the bottle. You can ask a candidate perfume lid factory whether they’re using a limit-ring or stop-point approach versus a traditional full-depth insertion — the answer tells you whether their height reduction is engineered or just a smaller mold with the same old assumptions baked in, which usually means a looser, wobblier fit at a shrunken size.

Magnetic assistance can also reduce how much mechanical insertion depth is needed in the first place, since the magnet’s pull does some of the retention work that used to rely purely on a tight mechanical fit. This is one of the few places in cap miniaturization where two separate engineering choices reinforce each other instead of competing for the same space — a stronger, smaller magnet (discussed in Part 1) and a shallower insertion depth work together rather than against each other.

Hidden-Neck and Low-Sprayer Design as a Structural Shortcut

The most aggressive way to reduce a cap’s height isn’t inside the cap at all — it’s a change to the bottle and sprayer assembly itself. High-end perfume packaging increasingly uses low-profile sprayer heads, short pump mechanisms, or a hidden-neck design where the bottle’s shoulder conceals most of the functional hardware. When the sprayer itself sits lower and shorter, the cap simply doesn’t need to be tall to cover it. A stone perfume lid manufacturer working closely with the bottle designer at the concept stage, rather than receiving a finished bottle and being asked to cap it, has far more room to use this approach.

This is worth raising early in any sourcing conversation, because it changes who needs to be involved in the design process. If you’re locked into an existing sprayer and neck design, your perfume cap factory is limited to the internal-structure tricks covered above. If you’re still finalizing the bottle, bringing your cap supplier in during that stage can unlock a smaller cap design that no amount of liner-thinning or wall-shaving could achieve on its own.

Adhesive Precision and Machining Tolerance: The Overlooked Millimeters

Two of the least glamorous parts of cap construction — the glue layer and the manufacturing tolerance margin — are also two of the easiest places for wasted space to hide. Neither shows up in a rendering or a product photo, but both eat into the internal volume budget just as much as the liner or the magnet.

Controlling Glue Layer Thickness to the Hundredth of a Millimeter

Adhesive is necessary almost everywhere a crystal shell meets an internal component, but an inconsistent or overly thick glue layer can quietly add a surprising amount of bulk, especially once it’s applied unevenly across a curved surface. Switching to a low-viscosity UV-cure adhesive, combined with precision dot-dispensing equipment and positioning jigs that hold components steady during cure, lets a perfume cap factory control the glue layer down to roughly 0.05–0.15 mm — a range so thin it has to be measured rather than estimated. That’s a tenth of a millimeter or less, which sounds trivial until you remember it’s being saved at multiple bonding points around the same small structure.

So what does this mean in practice? It means two suppliers using identical liners, identical magnets, and identical wall thickness can still end up with caps that differ in final size, purely because one of them controls adhesive application and the other doesn’t. If your current stone perfume cap manufacturer isn’t using dot-dispensing with positioning jigs, ask why — uneven glue application is also a common, quiet cause of slight tilt or asymmetry in a finished cap, which becomes much more visible at smaller overall sizes.

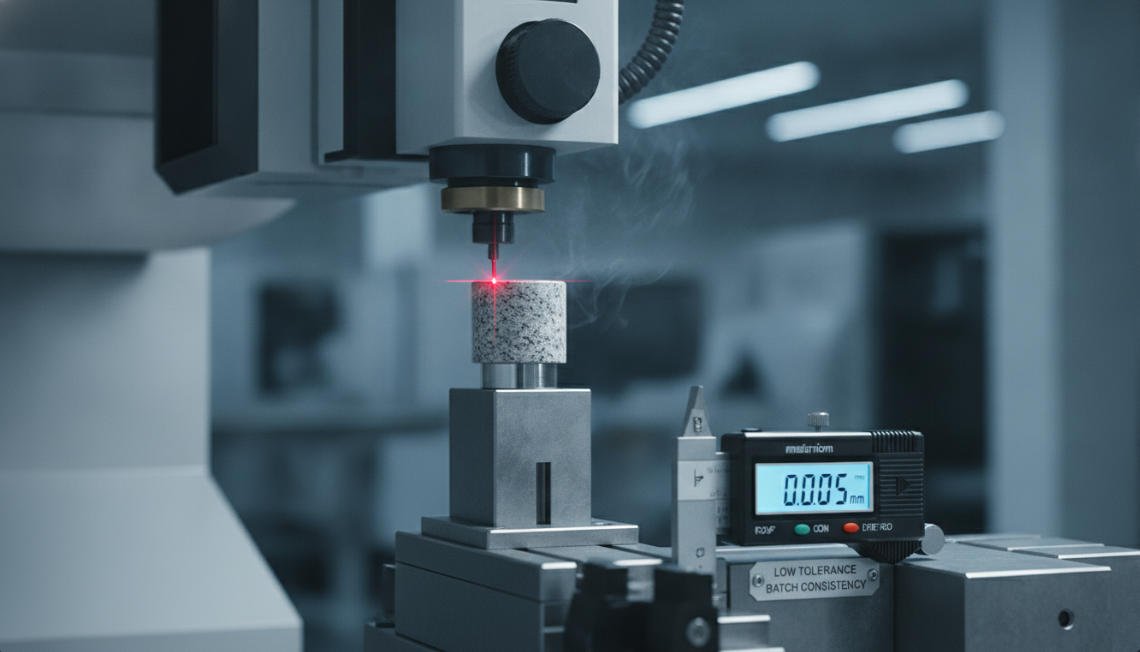

How Five-Axis CNC and Laser Positioning Shrink the Safety Margin

Every machining process has to leave some tolerance — a buffer zone that accounts for the small, unavoidable variation between one part and the next. A factory running basic three-axis CNC equipment with manual fixturing typically needs a larger tolerance buffer, because there’s more room for the part to shift slightly during multiple repositioning steps. Five-axis CNC equipment, laser positioning systems, precision jigs, and digital measurement tools all reduce that variation, which means a stone perfume lid manufacturer using this equipment can design with a tighter tolerance margin and therefore a more compact overall structure.

This is one of those upgrades that’s almost entirely invisible to a buyer looking at a sample, because the sample itself looks fine either way — the difference shows up across a full production run, in how consistently the second, the two-hundredth, and the two-thousandth unit match the first one. A tighter tolerance margin achieved through better equipment means more of your units will sit comfortably within spec, and fewer will need rework or rejection. That consistency is exactly what determines whether your landed cost per unit stays close to your quoted price, or creeps upward once rework and replacement units get factored in.

The Real Manufacturing Risks of Going Smaller (Industry Risk Disclosure)

Everything covered so far describes how size reduction is achieved. This section exists because how it’s achieved is only half the story — what can go wrong matters just as much, and a responsible perfume cap manufacturer should be telling you about this before you commit to a small-format order, not after a failed shipment arrives.

Why Smaller Caps Carry Measurably Higher Production Risk

As internal and external dimensions shrink together, the physical working space for every operation shrinks with them, and several specific failure modes become more likely rather than less. Drilling becomes more prone to causing micro-fractures or outright breakage, because there’s less surrounding material to absorb stress during the cut. Assembly becomes physically harder, since technicians are fitting smaller magnets, thinner liners, and tighter tolerances into a structure that has less room for human error. Dimensional consistency becomes harder to hold across a full production batch, and yield rates — the percentage of units that pass inspection on the first attempt — tend to drop as a direct result.

You should expect these risks to show up as cost, not as a vague warning on a quote sheet. A realistic estimate, based on typical patterns across high-precision stone and crystal component manufacturing, is that pushing into the most aggressive size reductions can lower first-pass yield by somewhere in the range of 10–25%, depending on the specific geometry and material involved. That yield gap doesn’t disappear — it gets absorbed either by your supplier raising the unit price to cover rework and scrap, or by you receiving a batch with a higher defect rate than you’d accept at a standard size. So what does that mean for your purchasing decision? It means a quote for a heavily miniaturized cap that looks suspiciously close to your standard-size pricing deserves a direct question about expected yield, because the math usually doesn’t work out otherwise.

Reading a Quote: What “Cheap and Small” Usually Signals

If you’re comparing offers from multiple perfume cap factory sources and one quote promises both aggressive miniaturization and a price matching your standard-size order, that combination is worth treating as a flag rather than a win. The physics of thinner walls, smaller magnets, and tighter tolerances doesn’t get cheaper just because a supplier wants the order — the cost has to surface somewhere, whether that’s in lower-grade materials substituted without disclosure, skipped quality checks, or a yield problem that becomes your problem after shipping. A transparent stone perfume cap manufacturer will walk you through where the savings actually come from, or will tell you plainly that a given size target simply costs more per unit, full stop.

This is also where material selection becomes a genuine safety question rather than just an aesthetic one — which stones hold up at extreme miniaturization and which ones don’t is detailed in the next section, because getting this wrong is one of the most common (and most preventable) causes of the yield problems described above.

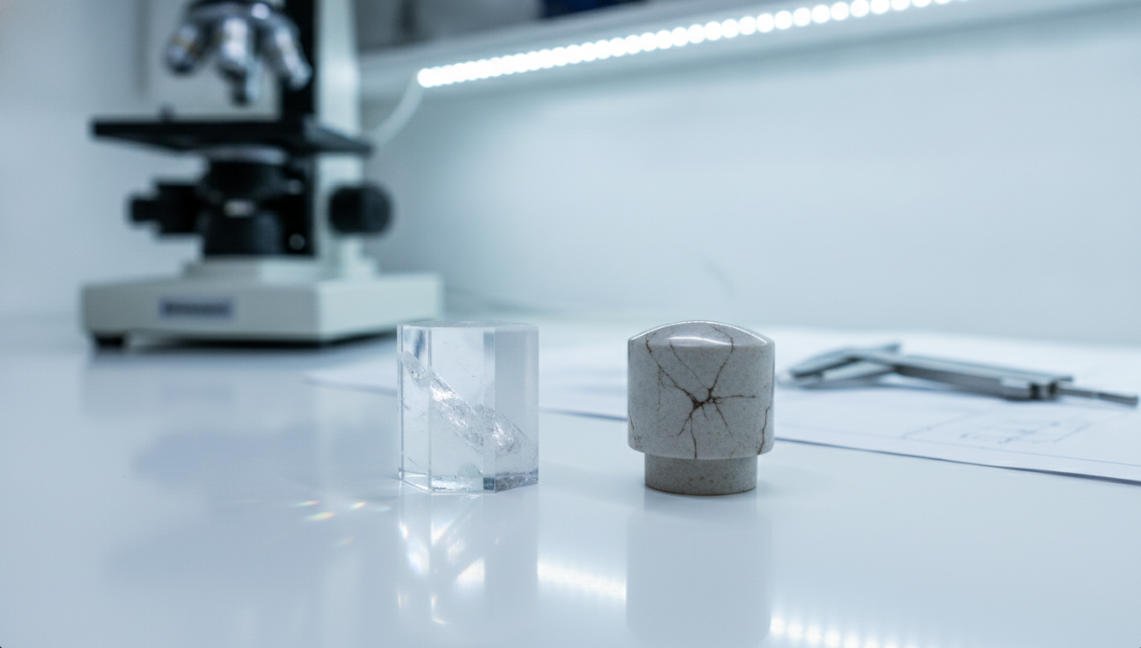

Choosing Stones That Survive Miniaturization

Not every material reacts to size reduction the same way, and this is where the gemological research becomes directly relevant to a packaging decision rather than just a jewelry one. According to the International Gem Society, some gemstones have poor or no cleavage, meaning they resist splitting better and overall hold up more durably — quartz, for example, has no prominent cleavage and can withstand more physical stress than some harder but more brittle stones. That single distinction explains a lot about why two stones with similar hardness ratings can behave completely differently once you push them toward a 1.5–2 mm wall.

Why Agate, Clear Quartz, and Amethyst Hold Up Better at Small Scale

Agate, clear quartz, natural quartz, and amethyst share a structural trait that matters more than color or clarity once you’re miniaturizing: a stable internal crystal arrangement with relatively low fracture tendency along any single plane. This is consistent with how GIA frames durability more broadly — gemologists evaluate durability through three separate factors, hardness, toughness, and stability, and no single gemstone scores a perfect rating across all three, which is exactly why a stone can be hard enough for daily handling and still be a poor candidate for a thin-walled cap if its toughness or stability is weak. For a stone perfume cap manufacturer, this means the material decision has to happen before the size target is finalized, not after — because the same 2mm wall target that’s routine in clear quartz might be unrealistic in a more fracture-prone stone.

So what does that mean for your product line? It means that if miniaturization is a priority for a particular SKU, choosing the right base material upfront can save you an entire round of failed sampling. A perfume lid factory with real experience will often steer you toward agate or quartz for your smallest cap formats specifically because the failure rate stays low enough to keep unit costs predictable, even before any of the structural tricks described earlier in this article come into play.

Why Fluorite and Heavily Veined Jade Are Poor Candidates for Extreme Miniaturization

On the other end of the spectrum, fluorite is a clear example of a beautiful material that simply isn’t suited to small, load-bearing structures. The International Gem Society notes plainly that fluorite’s perfect cleavage, brittleness, and low hardness make it too fragile for most jewelry use, and a separate IGS article on cleavage explains that all fluorite has perfect cleavage, meaning it has a strong tendency to break along defined internal planes — a property that becomes far more dangerous once you’re asking the material to hold a 2mm wall under repeated insertion stress. Jade or other stones with heavy natural veining or visible internal fracture lines carry a similar risk, even when the visible flaw looks cosmetic rather than structural.

This means that if a quote comes back proposing an aggressively small cap in a material known for poor cleavage resistance, the right response isn’t to push the supplier to “just make it work” — it’s to ask whether a different stone could hit the same design intent at a safer wall thickness. A stone perfume lid manufacturer who pushes back on a material choice for this reason isn’t being difficult; they’re flagging a failure mode before it becomes your returned-shipment problem.

Three Miniaturization Tricks the Industry Actually Uses

Beyond pure structural optimization, there are a few visual and structural shortcuts that let a cap look smaller than its true internal volume requires. The first is an outer-large, inner-small profile, where the visible silhouette reads as compact while the actual functional cavity is shaped to need less material removal at the most fragile points. The second is a load-bearing support structure disguised behind a crystal facade — essentially letting a hidden structural element carry the mechanical stress so the visible crystal shell can be thinner than it would need to be if it were doing that work alone. The third is the magnetic short-cap design discussed earlier, where reduced insertion depth combines with a strong, compact magnet to create a cap that reads as small without sacrificing the secure-closure feeling a customer expects.

Each of these approaches solves a slightly different problem, so a perfume cap manufacturer worth working with should be able to tell you which one (or which combination) applies to your specific bottle and sprayer configuration, rather than offering a single generic “we make small caps” answer.

How Mature Manufacturers Actually Balance the Trade-Offs

Everything in this article points toward one conclusion: pure miniaturization, treated as a standalone goal, is rarely the right target. The suppliers who’ve been doing this for years tend to optimize for something broader and less photogenic — a working balance across appearance, hand feel, sealing performance, drop-test strength, production cost, and batch-to-batch consistency.

Why “As Small As Possible” Is the Wrong Brief

If you ask a workshop to make a cap as small as physically possible with no other constraints, you’ll likely get a cap that’s smaller — and also less reliable, harder to manufacture at volume, and more expensive per good unit once yield losses are factored in. A more useful brief specifies the smallest size that still holds an acceptable drop-test result, an acceptable seal rating, and a yield rate your budget can absorb. This reframing matters because it shifts the conversation from a single dimension to the actual trade-off space your supplier is working within, which tends to produce a far more honest quote.

You’re better served asking a candidate perfume cap manufacturer to show you the smallest size they can hit while also guaranteeing a specific yield percentage and drop-test result, rather than asking for their absolute size limit in isolation. The absolute limit, pursued without those other constraints, is usually a number that looks impressive in a sales conversation and falls apart somewhere in your first production run.

What This Looks Like in Practice on the Factory Floor

In day-to-day production, this balance shows up as a series of small, deliberate compromises rather than one big design decision. A factory might accept a 0.3mm thicker wall than the theoretical minimum because it pushes yield up by several percentage points, or choose a slightly larger magnet than necessary because the resulting closure feel tests better with end users than the smallest magnet that technically holds the cap on. None of these choices are visible on a spec sheet, but together they’re the difference between a cap that performs consistently across fifty thousand units and one that looks great in a sample box and causes problems at scale.

This is ultimately the value a long-standing perfume cap factory brings that a newer or less experienced shop usually can’t: not a smaller absolute size number, but a tested sense of where the real edge of safe miniaturization sits for a given stone, sprayer, and use case — and the judgment to stop short of that edge by a margin that protects your production run.

Getting a Direct Answer on Your Cap Project

If you’re currently comparing quotes from different sourcing partners, sending your bottle neck diameter, sprayer height, and target cap dimensions to a crystal perfume cap wholesale contact lets a real engineering team — rather than a sales form — tell you which of the structural approaches covered here actually applies to your design, and at what cost.
